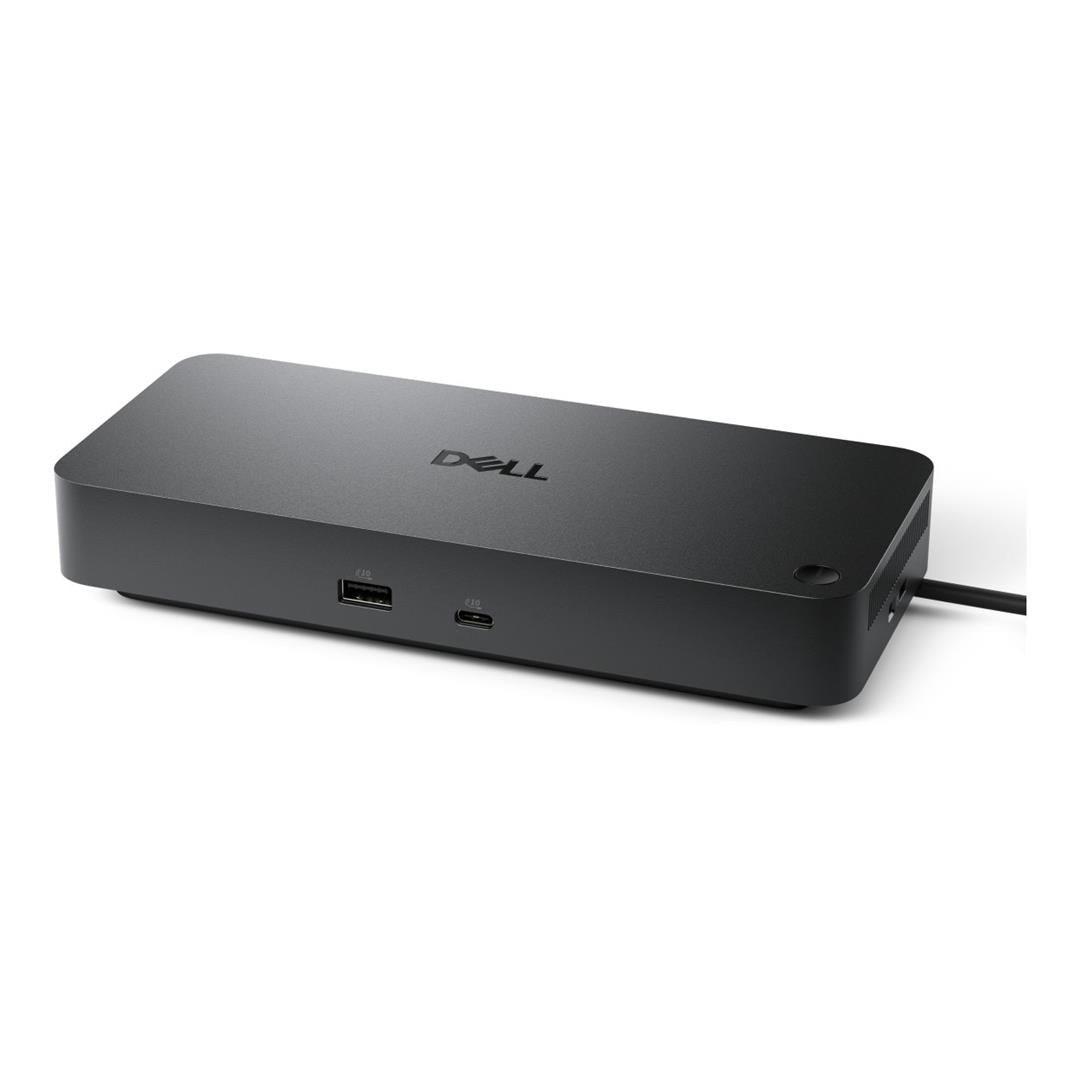

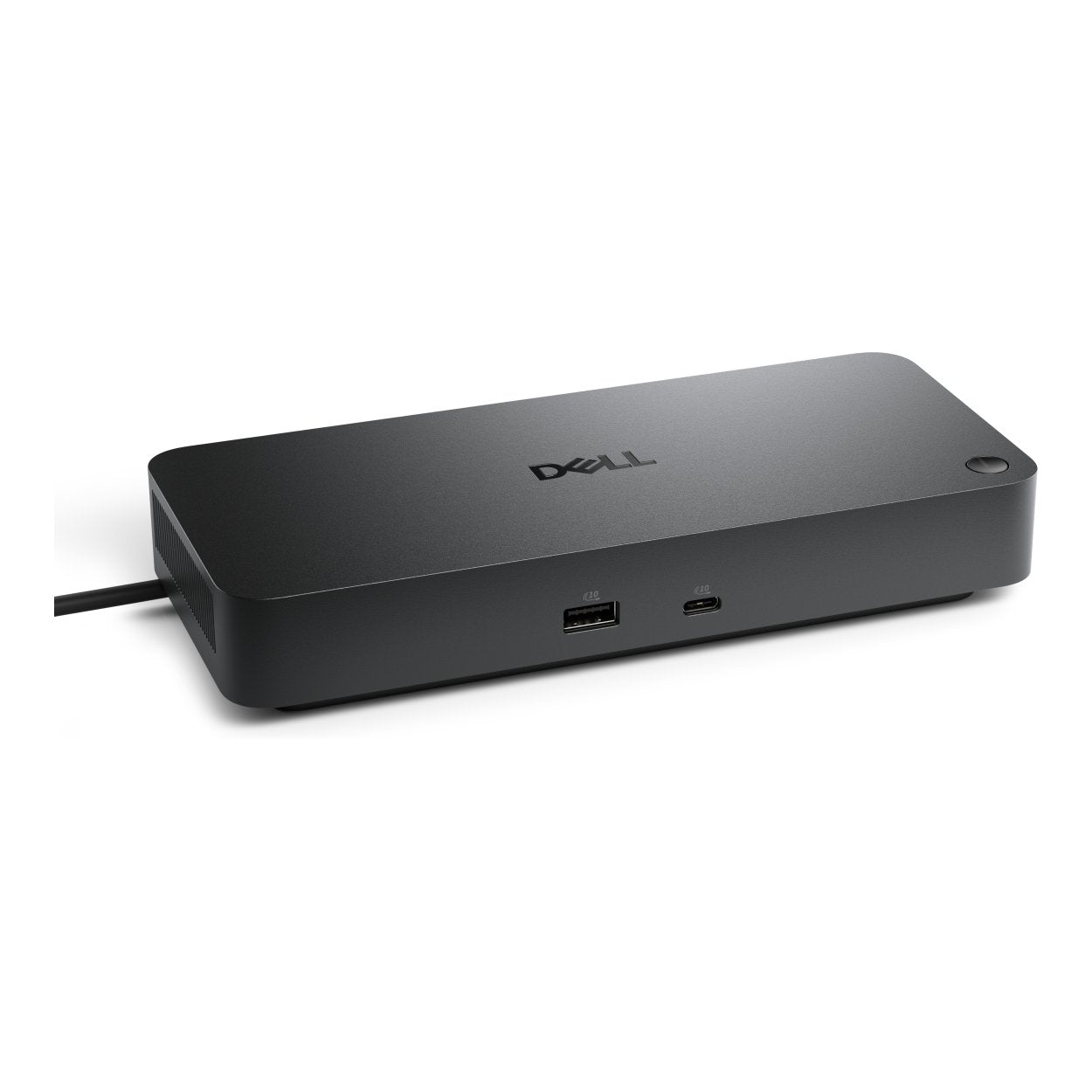

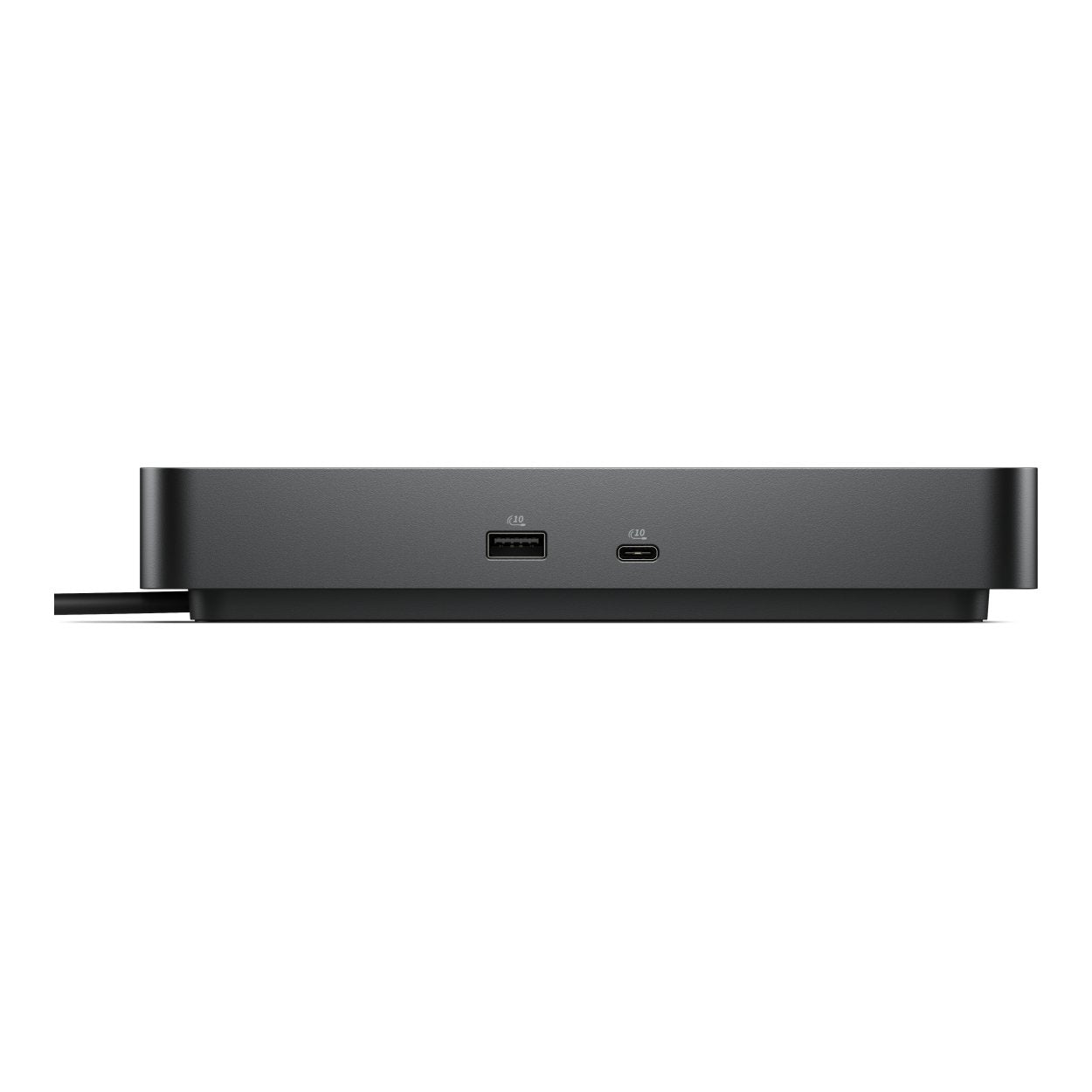

Dell Pro Dock - WD25

Features & Design

Fuel your productivity

Gain the versatility to create your ideal workspace with a dock featuring 6 USB ports, support for 4 displays and driving up to 100W of power delivery to the latest Dell AI PCs for optimal productivity.

More manageable

Keep your dock up to date and work without interruption.

Improved manageability

Manage your dock from the Dell Device Management Console by utilising Dell Display and Peripheral Manager installed on your PC.

Simplify firmware updates

Reduce IT complexity by deploying a single firmware file across workspaces.

Minimise end-user disruption with silent firmware updates that are executed upon dock disconnection.

Work with confidence

Enhance your docking experience with universally compatible features including MAC Address Pass-Through and Power Button Sync, for a better docking experience across brands.

Connect your way

Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.

Designed for sustainability

The Dell Pro Dock is built with at least 65% post-consumer recycled materials and packaged with 100% recycled or renewable packaging, and offering up to 72% power consumption reduction on standby mode.

Technical Specification

Product: Dell Pro Dock - WD25

Connectivity Technology: Wired

Number of Displays Supported: 4

Management Features

Host PC Management

• MAC address pass-through
• PXE Boot
• Dock Power Button Sync
• Wake-On-LAN
• WLAN to LAN switch
• Kernel Direct Memory Access (DMA) protection

Dock Management Features

• Host PC based firmware update
• Firmware update on disconnect
• Port Disablement

Device Supported: Notebook

Video Resolution

• DP1.4 with Display Stream Compression up to
  4x WQHD (3440 x 1440) @ 60Hz
  3x WQHD (3440 x 1440) @ 60Hz
  2x 5K (5120 x 2160) @ 60Hz
  1x 6K (6144 x 3456) @ 60Hz

• DP1.4 without Display Stream Compression up to
  4x HD (1280x720) @ 60Hz
  3x FHD (1920x1080) @ 60Hz
  2x QHD (2560x1440) @ 60Hz
  1x 4K (3840 x 2160) @ 60Hz

Ethernet Technology: RJ45 Ethernet port, 2.5GbE

USB Power Delivery

• 100W (Dell systems)
• 96W (non-Dell systems)

Maximum Power Supply Wattage: 130W

Kensington Security Slot: Yes

Operating System Supported

• Windows 10
• Windows 11
• Ubuntu
• Red Hat Enterprise Linux
• ChromeOS
• macOS

Weight: 550 g

Warranty: 3-year Limited Hardware with Advanced Exchange

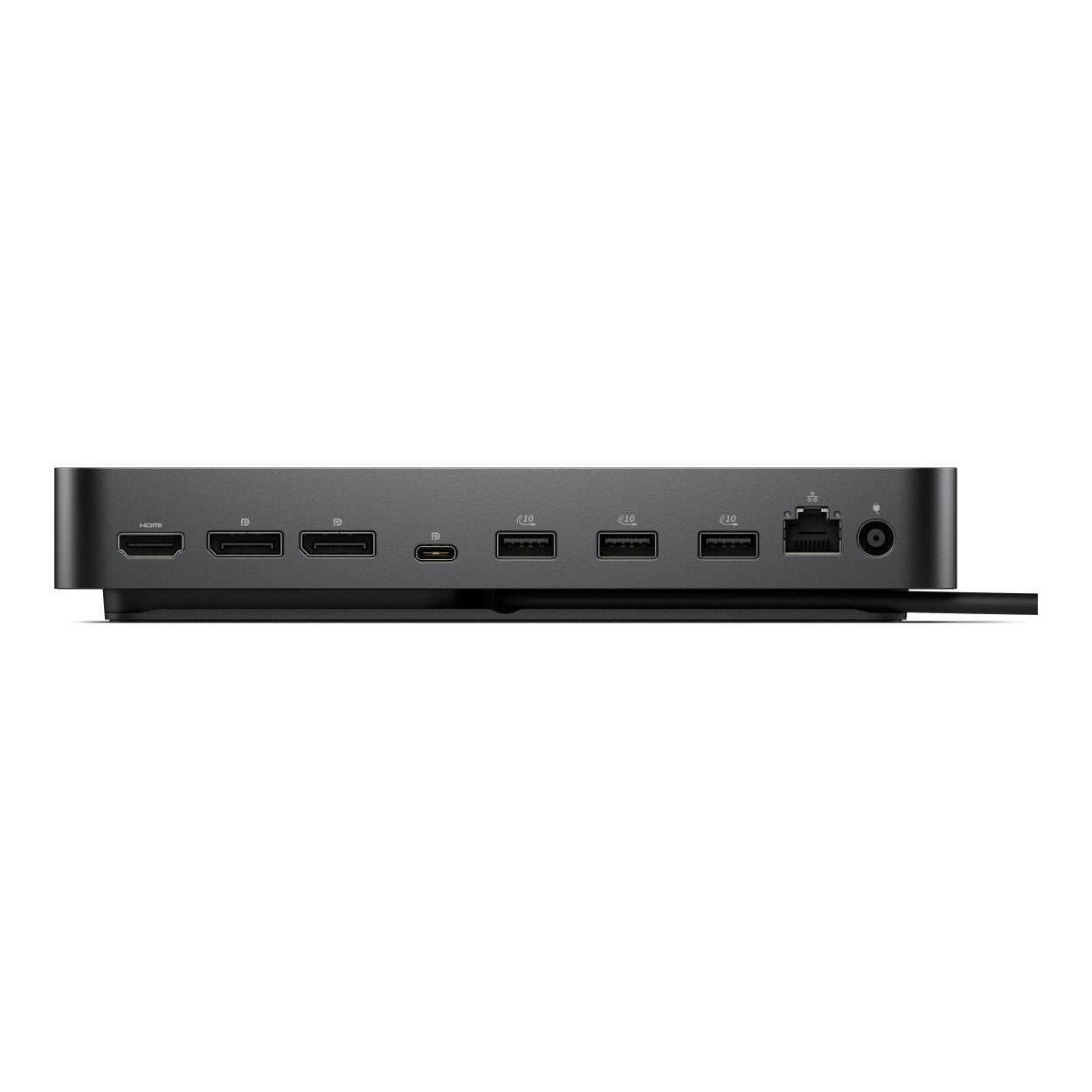

Ports and slots

1. USB-A 3.2 Gen 2 with PowerShare
2. USB-C 3.2 Gen 2
3. HDMI 2.1
4. DisplayPort 1.4
5. DisplayPort 1.4
6. USB-C 3.2 Gen 2 Multifunction DisplayPort 1.4
7. USB-A 3.2 Gen 2 with PowerShare
8. USB-A 3.2 Gen 2 with PowerShare
9. USB-A 3.2 Gen 2 with PowerShare
10. 2.5 Gigabit Ethernet (RJ45)
11. Power In

Dimensions

• Height: 205mm
• Width: 90mm
• Depth: 35.25mm

Boost your productivity with the latest pro dock that offers up to 100W power delivery and a wide variety of connecting options.
