Dell PowerEdge R760xs Xeon Silver 4410Y 32GB RAM 480GB SSD 2x700W Rack Server

Important Notice: This product has multiple configuration options. Product specifications may vary. Please chat with one of our friendly sales consultants before you purchase. While we do our best to ensure accuracy, sometimes there might be slight differences between our listings and the actual product specs. Thanks for your consideration.

Technical Specification

Product: Dell PowerEdge R760xs

Product type: Server

Chassis type: Rack (2U)

Processor: Intel Xeon Silver 4410Y

Processor socket: LGA 4677 - Single CPU option

Processor frequency: 2.00 / 3.90 GHz (30 MB Cache, 12 Cores)

Internal memory: 32 GB 5600 MHz RDIMM Dual Rank (1 x 32 GB)

Internal memory type: DDR5

Storage capacity: 1 x 480 GB SSD SATA Read Intensive 6Gbps 512e 2.5in Hot-plug AG Drive, 1 DWPD

HDD size

• Front bay - Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 121.6 TB
• Rear bays - Not included (supported only with 12 x 3.5-inch SAS/SATA HDD/SSD configuration)

Discrete graphics model: GPU support (up to 2 x 75 W SW, LP)

Optical drive: Not included

PCIe riser: Riser Config 0, No Riser, 1x16 + 1x8 (1 CPU), without OCP

Controller: PERC H755 SAS Front

Raid: Unconfigured RAID

Network adapter: Broadcom 5720 Dual Port 1Gb On-Board LOM

OCP 3.0 Network adapters: No OCP 3.0 mezzanine NIC card, Blank Filler Only

IDRAC9: Enterprise 16G

Power supply: Dual, (1+1) RDNT, Hot-Plug PSU, 700W MM HLAC (200-240V ONLY, not for 100-120V outlet) Titanium

Redundant power supply (RPS): Supported

Operating System: Optional

Rack Rails: ReadyRails Sliding Rails Without Cable Management Arm (B21)

Warranty: 3-year ProSupport Onsite

Front ports

• 1x iDRAC Direct (Micro-AB USB) port
• 1x USB 2.0
• 1x VGA

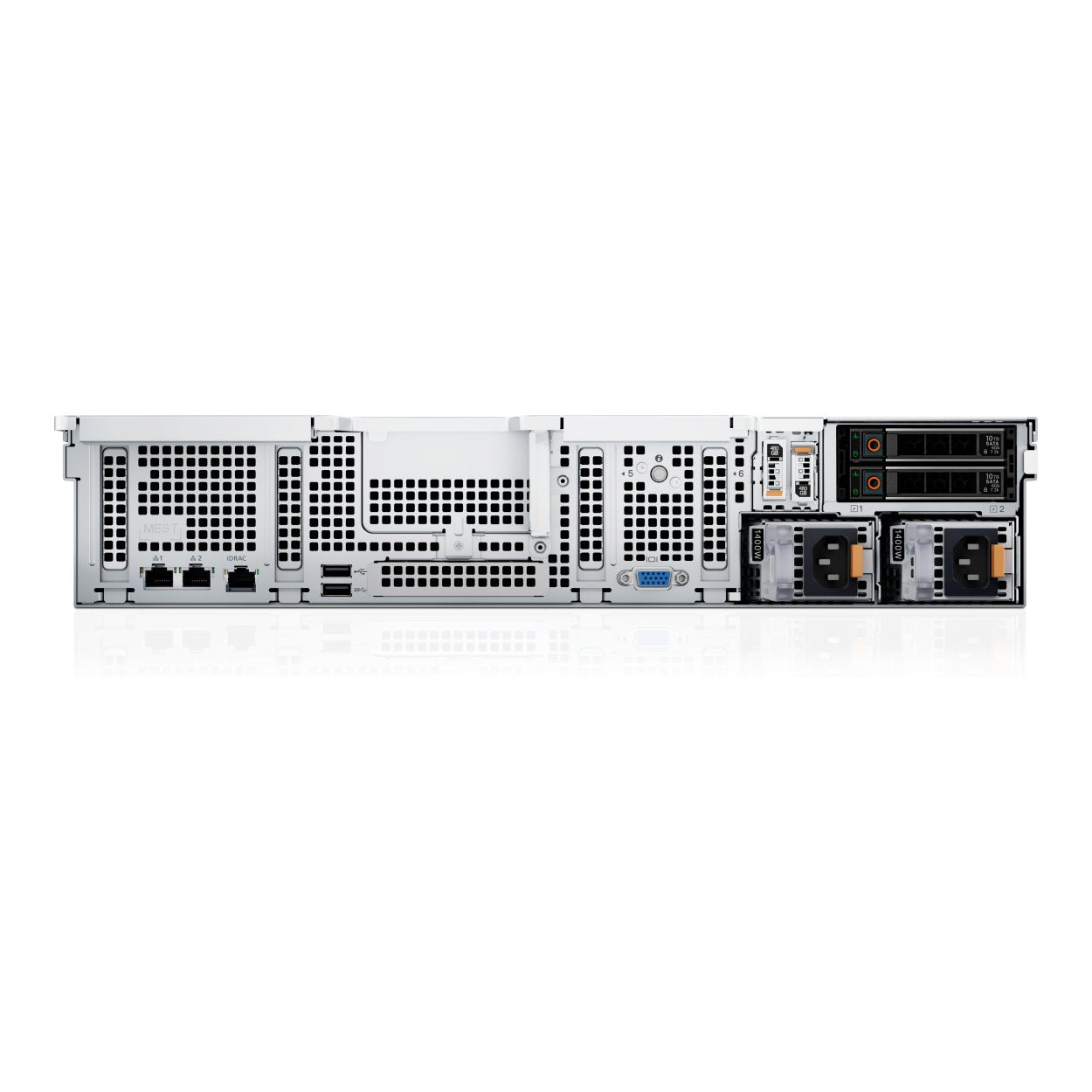

Rear ports

• 1x Dedicated iDRAC Ethernet port
• 1x USB 2.0
• 1x USB 3.0
• 1x VGA

The Dell PowerEdge R760xs is the best choice for the right balance in performance in an air-cooled chassis for the most popular IT applications.

Features & Design

Your innovation engine

The Dell PowerEdge R760xs is thoughtfully crafted to fit in your current infrastructure and deliver the right performance features to support your demanding enterprise applications.

Just right

Strike the right balance between performance and flexibility with this air-cooled solution designed for the most popular IT applications.

• Add up to two 5th Generation Intel^® Xeon^® Scalable processors with up to 28 cores per socket for faster performance
• Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 5200 MT/sec
• Improve data throughput and reduce latency with support up to 8 I/O devices
• Up to 6 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot
• Storage options include up to 12 x 3.5” HDDs/SSDs; or up to 16 x 2.5” HDD/SSDs, plus up to 8 x NVMe drives

• Specifications may vary depending upon region / model.

Systems management and security solutions

OpenManage systems management

Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.

Intelligent automation

Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organizations automate their server lifecycles, optimize operations and scale efficiently.

Built-in security

Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.

Dell Technologies offers complete end-to-end services

Optimizing the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.

Consulting

Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. We employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. We give you the confidence that your project will be done right and on time.

Support

Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.

Deployment

ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.
